Install File and iSCSI Services on Windows

Updated by Chris Little on Apr 24, 2015
Article Code: kb/854

Overview

By leveraging Lumen Cloud Public Blueprints, customers can automate operational tasks. In using the Install File and iSCSI Services on Windows Blueprint, customers can add the File and iSCSI storage roles on Windows Servers in an automated fashion.

Prerequisites

  • A Lumen Cloud Account
  • Supported Windows Operating Systems
    • Windows 2012 Datacenter 64-bit
    • Windows 2012 R2 Datacenter 64-bit

Notes

  • This packages includes File Server, BranchCache, Data De-duplication, DFS Namespace, DFS Replication, Resource Manager, VSS Agent and Server for NFS roles. Optionally, customers can choose to include iSCSI Storage Services.

Perform Install File and iSCSI Services on Windows using Group Tasks

  1. Navigate to the Servers Menu in Control.

    Portal Servers Menu

  2. Browse to the Group that houses the VM(s) you want to Install File and iSCSI services. Select Action, Execute Package.
    execute package on group

  3. Search for File and select the Install File and iSCSI Services on Windows script.
    Search for file

  4. Determine if you'd like iSCSI storage services included with the File Server roles and the VM(s) in the Group you wish to have these features installed upon. Customers can choose an individual VM or multiple. (Quick Tip: Only supported Guest Operating Systems will be shown.)
    Select Features and Servers

Install File and iSCSI Services on Windows using Blueprints

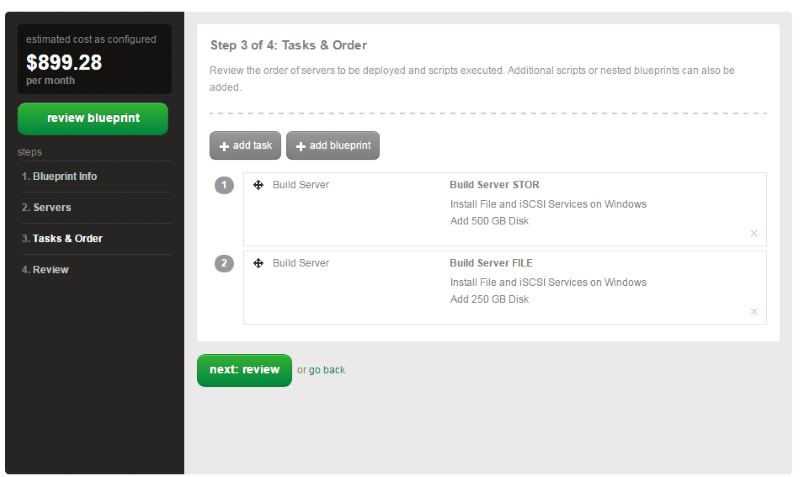

Customers who are building environments in the Lumen Cloud may wish to use Blueprints to build servers and install File and iSCSI Services in an automated fashion. Blueprints provide a tool for customers to build environments for multiple deployments.

To use this approach follow the How to Build a Blueprint Knowledge Base article and combine the Install File and iSCSI Services on Windows script with Windows Virtual Machine builds.

File and Storage Servers Environment

Validation

Validate the Virtual Machine(s) have File and iSCSI Storage Services installed.

  1. Login via RDP. Open Server Manager / File and Storage Services / Shares.
    validate shares

  2. Validate (if installed) the iSCSI Storage features are present and configurable in Server Manager.
    Validate iSCSI
