CloudFormation Template Boxes

Updated by Amalia Garcia de Mirasierra and Guillermo Sanchez on Nov 04, 2019
Article Code: kb/1185

In this article:

Overview

This article is meant to assist users of Cloud Application Manager willing to use Template Boxes to create or edit AWS CloudFormation templates.

Audience

All users of Cloud Application Manager who wants to define and use AWS Template Boxes.

Prerequisites

  • An active Cloud Application Manager account
  • An existing AWS account configured in an AWS provider.

Create a CloudFormation Template and Launch a Stack

The CloudFormation box consists mainly of a template where you describe all the AWS resources you need to run your application. Cloud Application Manager parses the template and automatically shows input parameters under a section called Variables. This enables you to customize a template easily.

We use a sample Wordpress template to show how to create and launch a CloudFormation template in Cloud Application Manager.

Step 1. Create the template

  1. Log in to Cloud Application Manager.

  2. Click Boxes > New > Template > CloudFormation Template. Give the box a meaningful name to identify it in the box service catalog. Specify other metadata.

    Creation process of the CloudFormation Template

  3. In the box, select New in Template, under Code tab. In this walkthrough, we import a sample WordPress template from a URL. When we save, contents from the URL are ported over.

    Import template since button 'New'

    Besides URL, you have a couple of other options to create a template:

    • Blank Template. Develop one from scratch. When you save, you have a blank template you can start authoring.
    • File. Upload an existing template. When you save, the contents of the file are available in the template. You can upload one up to 1MB in size.

    Note: When you import from a file or a URL, make sure its content is formatted in JSON and follows the CloudFormation template conventions.

Step 2. Author the template

  1. Start with a sample AWS CloudFormation template and click the pencil to modify. Here we use the sample WordPress template.

    Example AWS template

    Note: CloudFormation templates have their own taxonomy you must follow. Although a template typically has several sections, only Resources is required. For information and examples on how to declare each section, see Template Anatomy and Template Reference.

  2. Customize input parameters. Although optional, if you have them in the template, they’re automatically shown under Variables. You can customize several parameters as in this example.

    Modify AWS Templates

    Other example is:

    Variables of AWS Template

    You can customize further by adding parameters under Variables. In this example, we added an Options variable to set the database engine version at deploy time. When we save the variable, notice how it’s automatically added as a parameter to the template in the correct JSON format.

    Variables of AWS Template

    Variables in CloudFormation boxes:

    • The template accepts only String, Number, or CommaDelimitedList types. So any variables you add to the box are converted to one of these types. Text, file, password, URL, and email variables are treated as string parameters. Number and port variables are treated as number parameters.

    • Bindings have a special use and are explained later in this walkthrough.

    • Variables imported from a template are always required at deploy time even if you don’t flag them as such in the box. Since they must contain values at launch time, you can set a default value when creating them or supply them at deploy time.

    • At this time, box type variables are not supported.

    • The file variable is a useful way to include a script that you want to execute in your stack. When you add a file, Cloud Application Manager stores it on a secure server and declares the file variable as a parameter with a URL value in the parameters section of the template. To execute the file, you can add a script in the user data section of the template. Or depending on your resource type, reference it from the resource properties section. One example for using a file is to store it in the S3 bucket that you launch as part of the stack.

Note: As you’re authoring, it’s important to check that the template is valid. While Cloud Application Manager validates the correctness of the JSON format and the template syntax correctness, we can’t know whether resources specified are available in your AWS account or whether property values of a resource are valid. For that level of checking, it’s best to test launch the CloudFormation box instance from Cloud Application Manager and refine the template in real-time.

Step 3. Launch the CloudFormation stack

  1. On the box page, click Deploy.

  2. For Deployment Policy, select an AWS CloudFormation Deployment Policy added in Cloud Application Manager to indicate the location and the availability zone to launch the stack.

    Deploy AWS template

  3. Optionally, add tags for bindings, auto schedule the instance, and set auto updates.

  4. Under Variables, set values for each parameter based on the AllowedValues property in the template parameters section.

  5. Click Deploy to launch the stack.

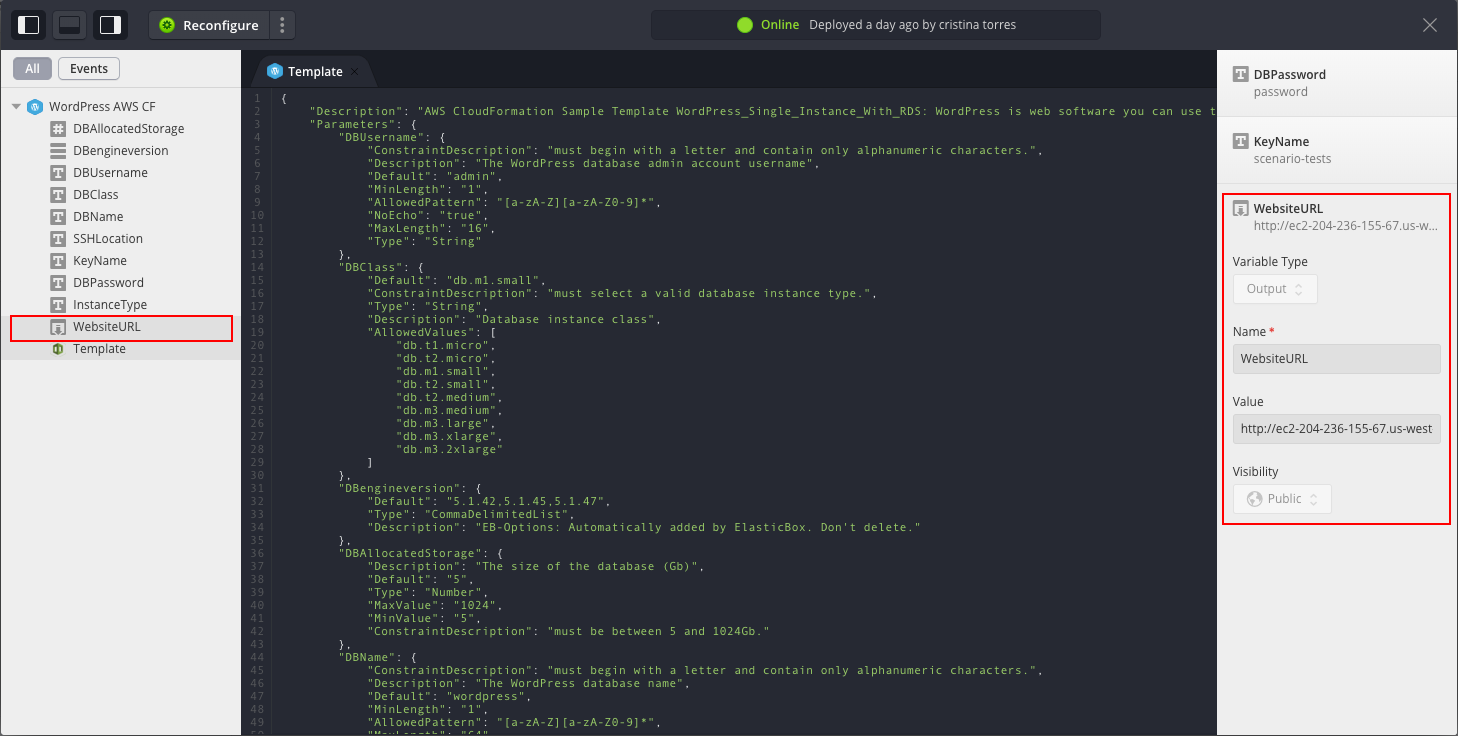

    Note: When launched successfully, website URL is available in the instance lifecycle editor. Click Lifecycle Editor on the instance page and look under WebsiteURL.

    LifecycleEditor

Auto-register compute instances into Managed Services Anywhere Enabled Providers

If you are deploying a CloudFormation template box into a Managed Services Anywhere enabled provider, all the created compute instances (EC2 and Scaling groups based instances) will be automatically registered and linked with the CloudFormation instance that deployed them. In these registered instances, not all lifecycle actions will be allowed, since for the rest of them you will need to act on the parent CloudFormation instance for the dependant linked instances to be updated.

For more information, please refer to Managed Providers

Update a CloudFormation Stack in Real-Time

Once live, you can continue to make changes to your CloudFormation template from the instance lifecycle editor and test in real-time. Follow these steps.

Steps

  1. Log in to Cloud Application Manager.

  2. Click Instances and select the CloudFormation instance you want to update. In this example, we’ll select the WordPress instance launched earlier.

  3. On the instance page, click Lifecycle Editor.

    Deploy instance

  4. Update the template and test launch the stack. You can change any section of the template or rewrite it entirely. When ready to update the stack in AWS, click Reconfigure. In this example, we increased the RDS database size by changing the value of the DBAllocatedStorage parameter.

    Update instance and reconfigure

  5. (Optional) Push updates back to the CloudFormation box. When you’re satisfied changing and testing the template in the instance, you can push it back to the CloudFormation box as a version. To do this, click New under Versions tabs. This allows you or others in the future to choose a version that best suits your deployment.

    Changes in instance

Connect to Other CloudFormation Boxes over Bindings

Large CloudFormation deployments are challenging to manage in a single template. To simplify, break the template into smaller, manageable CloudFormation boxes and connect them with bindings. Then use text expressions to call the bindings. When you do, they’re added to the parameter section of the template. At deploy time, the CloudFormation service calls the binding to connect and pass values between boxes.

To illustrate, we create a second CloudFormation box to scale the WordPress blog instance automatically when past its load limit. In the following steps, we add a binding and call it to connect the WordPress box to the autoscaling box.

Steps

  1. Create a CloudFormation box using the AWS autoscaling template and deploy it.

    Deploy autoscalling template

  2. Go to the WordPress box and add a binding to the Autoscaling box.

    Ceate new variable in template

  3. When the WordPress box is deployed, the autoscalebinding variable must be matched with the Autoscaling Instance.

    Bindings Instances

  4. The relationship created by the binding is showed in the grid view.

    Grid view

If some value of the binding is used in the WordPress box configuration, a text expression variable type must be created.

Under Variables, click New and select the text expression variable type. Enter this connection string: {{ autoscalebinding.address }}

Binding variable value

The expression can contain any string value or variables from templates. It can also contain system variables like instance, username, addresses. In general, follow this syntax: {{ binding_name.variable_name }}
