Deployment Policy Boxes

Updated by Julio Castanar and Sergio Quintana on May 20, 2019
Article Code: kb/393

In this article:

Overview

This article is meant to describe Cloud Application Manager Policy Boxes, as well as usage instructions and managing.

Audience

Cloud Application Manager customers.

Prerequisites

  • Access to Applications site (Application Lifecycle Management module) of Cloud Application Manager as an authorized user of an active Cloud Application Manager account.

Deployment Policy Boxes

Give access to cloud provider infrastructure using a deployment policy box. Policies help allocate cloud resources securely rather than giving access to the entire cloud provider. As IT operations, you have control over what and how much resources deployments consume.
Customize policies to support specific deployment scenarios. For example, you may want to provide a small instance type of a certain Linux distribution in a policy to launch development environments.

Create a Deployment Policy

  1. Log in to Cloud Application Manager Application site.

  2. On the Boxes page, click New > Deployment Policy. Select here a type of deployment policy box.

    New deployment policy box

    Then select a cloud provider added before in Cloud Application Manager, give the box a meaningful name to identify it among your boxes and optionally specify other metadata.
    You can also specify claims related to the policy. For more information see Claims and Requirements

    New virtual of physical machine policy box

    After setting up the policy, click save to continue.

  3. In the recently created Deployment Policy Box, under Code tab, select Edit in Policy section to customize the policy.
    New virtual of physical machine policy box

    Select the resource, network, region, and other deployment settings from the cloud provider.
    See the provider help for more details:

    Note: If you’re deploying to public cloud providers like AWS or Google Compute, you’ll most likely be charged by the cloud provider for the virtual infrastructure you provision. Familiarize yourself with their pricing model as Cloud Application Manager assumes no responsibility for costs incurred.

    Note: Instance Protection Flags will prevent the instance to be manually shut-down or terminated if enabled. They will be inherited in any instance deployed through this Deployment Policy box. More information about Instance Protection flags

Claims and Requirements

Claims help define which features or traits the policy offer, allowing the user to declare which kind of functionality the deployment policy box provides. This is a simple mechanism to define custom labeled features. These claims are matched with the Requirements of the box during the deployment.

For example, user can set a 'linux' claim to ensure that boxes deployed with the requirement 'linux' are matched. At deployment time selectable deployment policies will be filtered based on the requirements of the box to be deployed.

Give Access to the Policy

Once you set up the policy, give team workspaces and individuals access to cloud resources for their box deployments. Team workspaces and individuals that already had access to the workspace where the Deployment Policy Box was created, automatically have access to it too.
Give access to other individuals or team workspaces by clicking on the pencil of the Collaborators panel in the Overview tab of the deployment policy box, search the users and give them view, edit, or owner access.

Share deployment policy box

Share Access Description
Is Owner Rename or delete the policy metadata and edit the policy settings if you have edit access to the provider registered in Cloud Application Manager.
Can Edit Change the policy box metadata and edit the policy settings if you have edit access to the provider.
Can View Consume the policy to deploy boxes.

For more information about sharing, see sharing boxes, instances and providers.

Deployment policy variables

Clicking the Code section of a Deployment Policy box gives the user the possibility of editing the already defined Policy, as well as defining some variables to parametrize that box.

Available variable types for Deployment Policy boxes

Almost all kinds of variables which apply in this case are already explained in detail here, so a general overview will be given:

  • Box variable: holds a reference of the configuration of another box in your workspace. This is how multi-tier applications can be achieved. Child boxes inside will deploy on the same virtual infrastructure as the parent box.

  • Text variable: stores strings like usernames, paths, file names, connection strings, endpoints URLs, or binding values, inter alia.

  • Options variable: provides a drop-down of values for users to choose from when deploying the box.

  • Multi Options variable: similar to Options variable, but allows to define several default values instead of the single value an Options variable can set.

  • Password variable: assigns a sensitive string value that is hidden by the Cloud Application Manager interface. Typically, passwords are used to give admin accounts access to the virtual machine or applications in it.

  • Number variable: stores integer values and can be accessed in event scripts just like text variables.

Control Box Deployments with Admin Boxes

Any script box attached to a deployment policy is an admin box. The admin box allows enterprise IT operations teams to run common admin tasks in deployments to comply with company policies and best practices. Such common admin tasks can include installing monitoring agents, registering virtual machines in a database, or setting up public keys on all machines before making them available to users.

Admin box use cases

Admin boxes are useful in these deployment scenarios:

  • Install a monitoring agent. An admin box can locally install a monitoring agent like Nagios or New Relic that can monitor virtual machine activities and send data back to a central monitoring service.
  • Set the hostname. An admin box can set the hostname of every virtual machine deployed to a provider’s environment.
  • Register virtual machines on a server. For every virtual machine deployed, an admin box, for example, can register it to a Chef Master server and then release it when the machine terminates.
  • Install certificates. An admin can install certificates locally on every virtual machine in production as a simple example.

Creating and Executing an Admin Box

To create an admin box, open a deployment policy and add a script box under Variables section.
Typically, you want to add a script box that matches the policy OS type. In a Windows policy for example, add a script box that runs on Windows.
A policy can have as many admin boxes as needed.

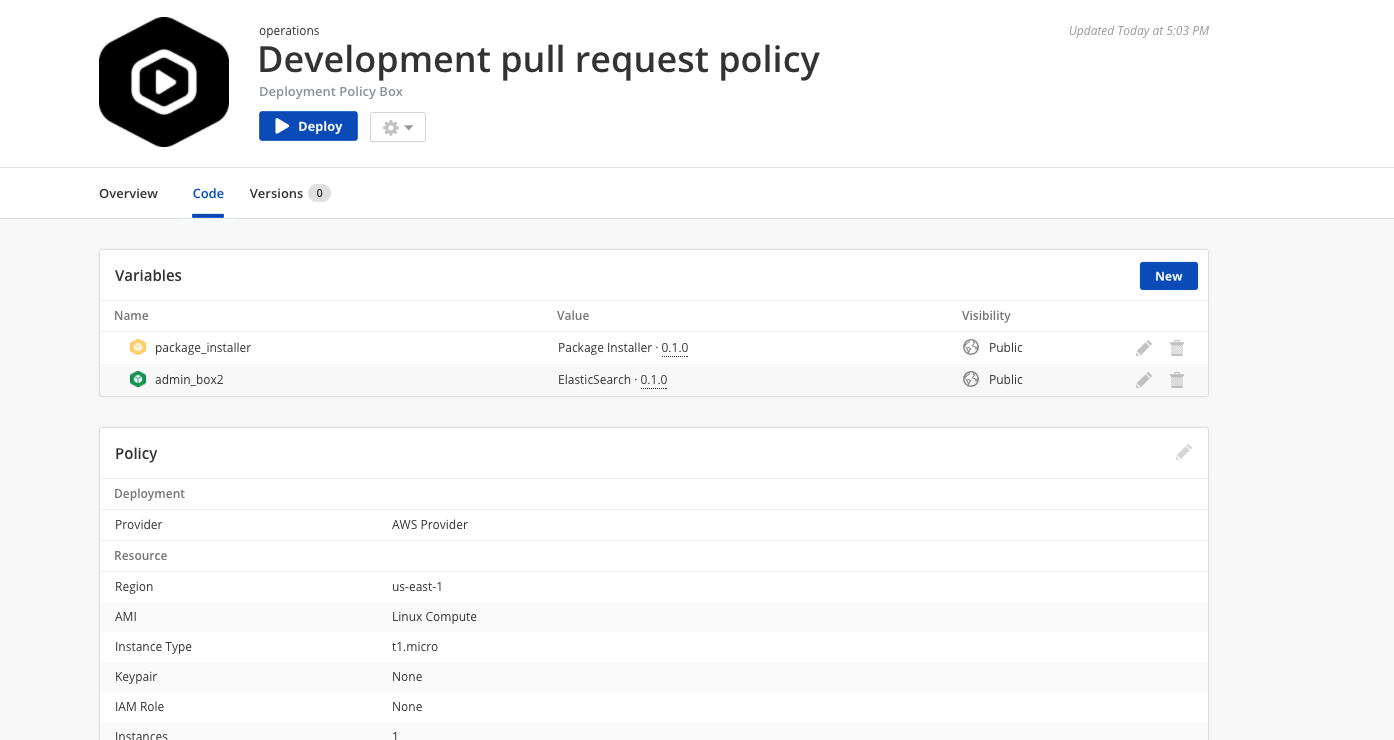

Admin box list view

When a box launches on a deployment policy containing an admin box, Cloud Application Manager wraps it like a child box in the admin box deployment.
In each main event type such as install, configure, start, stop, the admin box runs first followed by events of the box launched.
To execute admin box events before others within each event subcategory like pre-install, install, move the commands to the admin box pre-install, pre-configure, and pre-start events.

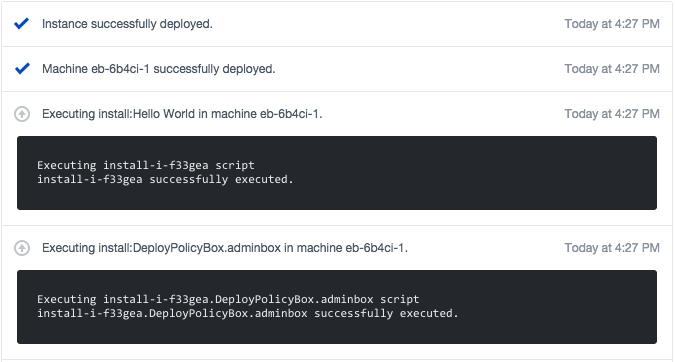

Admin box's executing output

Contacting Cloud Application Manager Support

We’re sorry you’re having an issue in Cloud Application Manager. Please review the troubleshooting tips, or contact Cloud Application Manager support with details and screenshots where possible.

For issues related to API calls, send the request body along with details related to the issue.

In the case of a box error, share the box in the workspace that your organization and Cloud Application Manager can access and attach the logs.

  • Linux: SSH and locate the log at /var/log/elasticbox/elasticbox-agent.log
  • Windows: RDP into the instance to locate the log at \ProgramData\ElasticBox\Logs\elasticbox-agent.log
