Creating a Docker Swarm on Lumen Cloud

Updated by Richard Case on Jul 09, 2016
Article Code: kb/460

logo

The release of Docker Engine v1.12 introduced swarm mode for creating and managing a cluster of Docker Engines which is referred to as a swarm. This replaces Docker Swarm which was previously a separate application.

A Swarm is a collection (cluster) of nodes running Docker Engine following a decentralized design where services can be deployed. Swarm mode includes scaling, service discovery, desired state, and many other features. For an overview of Swarm mode see: https://docs.docker.com/engine/swarm/

By using our plugin for Docker Machine, users can create a Docker swarm on Lumen Cloud by running a small number of Docker Machine commands to create the nodes. Thus allowing for the ability to run the Docker CLI commands required to create the swarm by setting the machine context using Docker Machine.

Prerequisites

The following requirements are needed to create a Docker swarm in Lumen Cloud.

If you don’t have a Lumen Cloud account yet, no problem. Sign up for a free trial.

Swarm Creation

Creating a Docker swarm is made of a number of different steps. The steps have been divided into the following sections:

Environment Setup

  1. Decide how many manager and worker nodes you want in your swarm. The following table contains some advice:
Node Type Advice
Worker For production environments more than 1 node is recommended.
Manager For production environments more than 1 node is recommended. Additionally, due to the use of the Raft consensus algorithm in the manager nodes it's recommended that there are an odd number of manager nodes.

NOTE: By default, the manager nodes will be used to run tasks in addition to the worker nodes. The manager nodes are used to submit tasks and they performance the management and orchestration function of the swarm

NOTE: More information on Raft can be found here http://thesecretlivesofdata.com/raft/

  1. Open a command prompt and set the CLC_USERNAME, CLC_PASSWORD and CLC_ALIAS environment variables for your CLC account. For example, on Linux & OSX:
export CLC_USERNAME='<username>'
export CLC_PASSWORD='<password>'
export CLC_ALIAS='<alias>'
  1. Connect to CLC using VPN. To learn more about ways to connect such as persistent VPN or direct connection, please review Network Access Options for Connecting to the Lumen Cloud Platform.

Node Creation

  1. Create the manager nodes by running the following command once for each manager to create:
docker-machine create -d clc --clc-server-group "DockerSwarm" --clc-server-location "GB3" MANAGER1

NOTE: Docker machine will use MANAGER1 as the identifier for this manager node. Therefore, when creating multiple manager nodes make sure this name is unique.

NOTE: The clc-server-group and clc-server-location command line options are not required and if they are omitted defaults will be used. For a full list of the supported command line options run this command:

docker-machine create -d clc
  1. Create the worker nodes by running the following command once for each worker to create:
docker-machine create -d clc --clc-server-group "DockerSwarm" --clc-server-location "GB3" WORKER1

The notes from step 1) apply to the worker nodes as well.

  1. Once the nodes have been created run the following command to see a list of all the Docker hosts that have been created:
docker-machine ls

The output will be similar to the following:
docker-machine ls

Create the Swarm

  1. Set the Docker environment variables for the first of the manager nodes by first running:
docker-machine env MANAGER1

Depending on your OS the command will output a command that can be used to set the required environment variables. For example:

eval $(docker-machine env MANAGER1)
  1. Create the swarm by running the following command:
docker swarm init

The output of the command will contain the command that will be used later to join worker nodes to the swarm. Save the command for later use:

docker-machine ls

NOTE: There are a number of command line options that can be specified when creating the swarm. See: https://docs.docker.com/engine/reference/commandline/swarm_init/

Add Manager Nodes

  1. Whilst the Docker environment variables are still set to the first manager node run the following command:
docker swarm join-token manager

The output of the command will contain the command that will be used to join additional manager nodes to the swarm:
docker-machine ls

  1. Set the Docker environment variables for the manager node to join to the existing swarm by first running:
docker-machine env MANAGER2

Depending on your OS the command will output a command that can be used to set the required environment variables. For example:

eval $(docker-machine env MANAGER2)
  1. Run the command that was output in step 1). For example:
docker swarm join \
    --token SWMTKN-1-2lptlwq6p1ddt0t6qpil2p904qlmrwnrik7f5a2c0gdvvs7hn4-cuxeu68q9ec159axrciz6wbqf \
    10.105.30.12:2377

The output of the command should indicate that the node joined the swarm as a manager.

  1. Repeat steps 2) & 3) for each of the remaining manager nodes that need to join the swarm.

Add Worker Nodes

  1. Set the Docker environment variables for the worker node to join to the existing swarm by first running:
docker-machine env WORKER1

Depending on your OS run the command from the output to set the require environment variables. For example:

eval $(docker-machine env WORKER1)
  1. Run the command that was output in step 2) of the Create the swarm section. For example:
docker swarm join \
    --token SWMTKN-1-2lptlwq6p1ddt0t6qpil2p904qlmrwnrik7f5a2c0gdvvs7hn4-138uv6z599o1q9gki9wzwumn7 \
    10.105.30.12:2377

The output of the command should indicate that the node joined the swarm as a worker.

  1. Repeat steps 1) & 2) for each of the remaining worker nodes that need to join the swarm.

Validate the Cluster

  1. Run the following command to list all the nodes in a swarm with their status:
docker node ls

You should see output similar to the following:
docker-machine ls

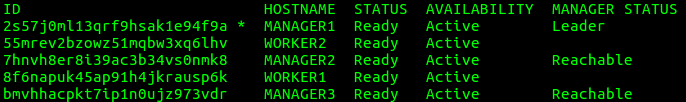

This shows various information including the status of each node and which manager has been elected the leader.

What's Next?

Now you have a working Docker swarm running on the Lumen Cloud you are ready to start managing and deploying services to the swarm. It's recommended that you follow the swarm mode tutorial from this starting point: https://docs.docker.com/engine/swarm/manage-nodes/
